Fort Rinella - Kalkara, Malta - Sunken Passageway and Concealed Fortifications

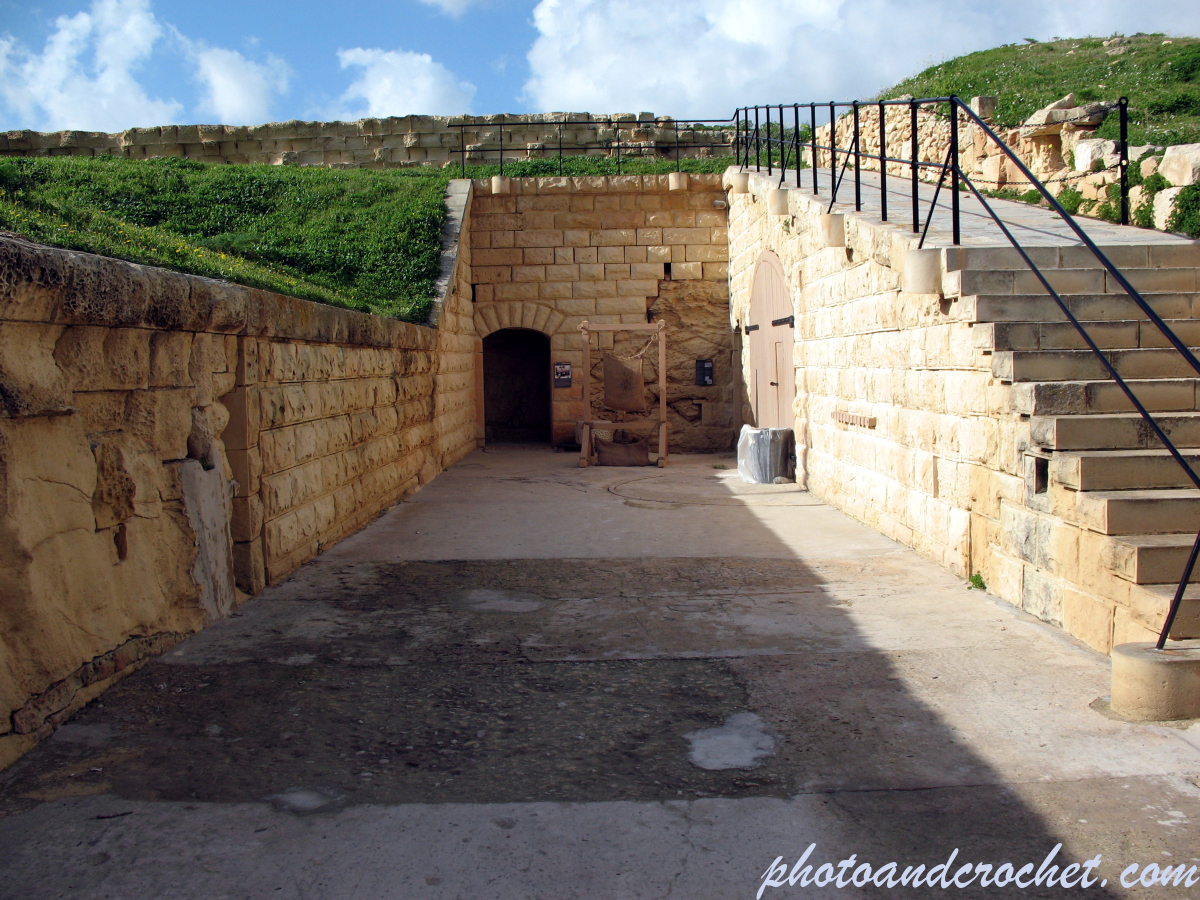

An internal passageway at Fort Rinella in Kalkara, Malta, showing the limestone walls, recessed entrance, access staircase and grassy defensive embankments that helped conceal the Victorian coastal fortress within the landscape.

This photograph reveals part of the unusual internal layout of Fort Rinella in Kalkara, Malta, showing how the Victorian coastal fortress was constructed partly below the surrounding ground level. A broad, paved passageway extends between substantial limestone walls towards a small arched doorway at the far end. On the right, a stone staircase with black metal railings leads upwards to the higher level of the fort, while a second doorway opens into an adjoining chamber beneath the defensive masonry. The left side of the passage is bordered by a thick limestone retaining wall supporting a sloping embankment covered with green grass and low vegetation. Above the passageway, additional stonework and metal railings follow the upper perimeter of the installation. The arrangement of recessed rooms, heavy masonry and earth-covered structures illustrates how the fort was designed to remain relatively inconspicuous when viewed from the surrounding countryside or sea.

Fort Rinella was constructed by the British between 1878 and 1886 to protect the maritime approaches to Malta’s strategically important Grand Harbour. The fort was specifically designed to accommodate an enormous Armstrong 100-ton rifled muzzle-loading gun, one of the largest artillery weapons installed in a coastal fortification during the nineteenth century. Unlike traditional bastioned fortresses with imposing walls and elevated gun platforms, Fort Rinella incorporated a low-profile design in which much of the installation was recessed into the terrain. Thick limestone masonry and substantial earthworks provided protection against enemy artillery fire, while the relatively low external profile reduced the visibility of the fort from approaching warships. The internal layout included the main gun emplacement, ammunition storage facilities, machinery spaces, access passages and accommodation for the military personnel responsible for operating the weapon. The enormous Armstrong gun required specialised hydraulic equipment for loading and aiming, making the installation considerably more complex than a conventional coastal artillery battery. The passageway visible in this photograph demonstrates how different parts of the fort were connected while remaining protected behind heavy masonry and earth-covered defensive structures. This approach reflected developments in nineteenth-century military engineering, when increasingly powerful naval artillery required fortifications capable of withstanding heavy bombardment. Today, Fort Rinella is preserved as a military heritage attraction, allowing visitors to explore its unusual architecture and discover the technology associated with Victorian coastal defence. This photograph documents a less frequently photographed aspect of the fort, highlighting the practical design of its internal passages and the remarkable way the installation was incorporated into the surrounding Maltese landscape.
